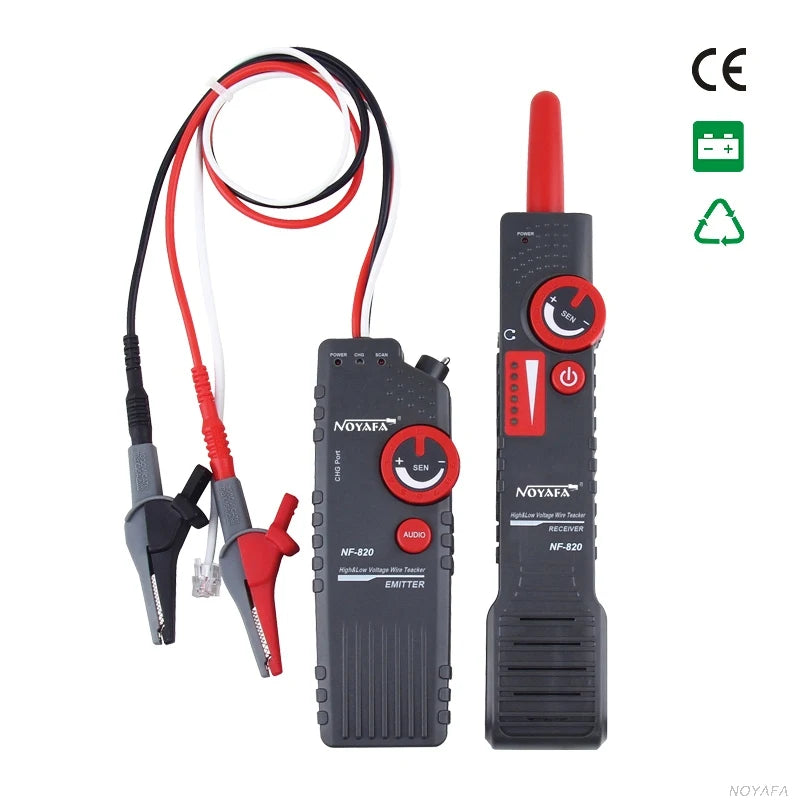

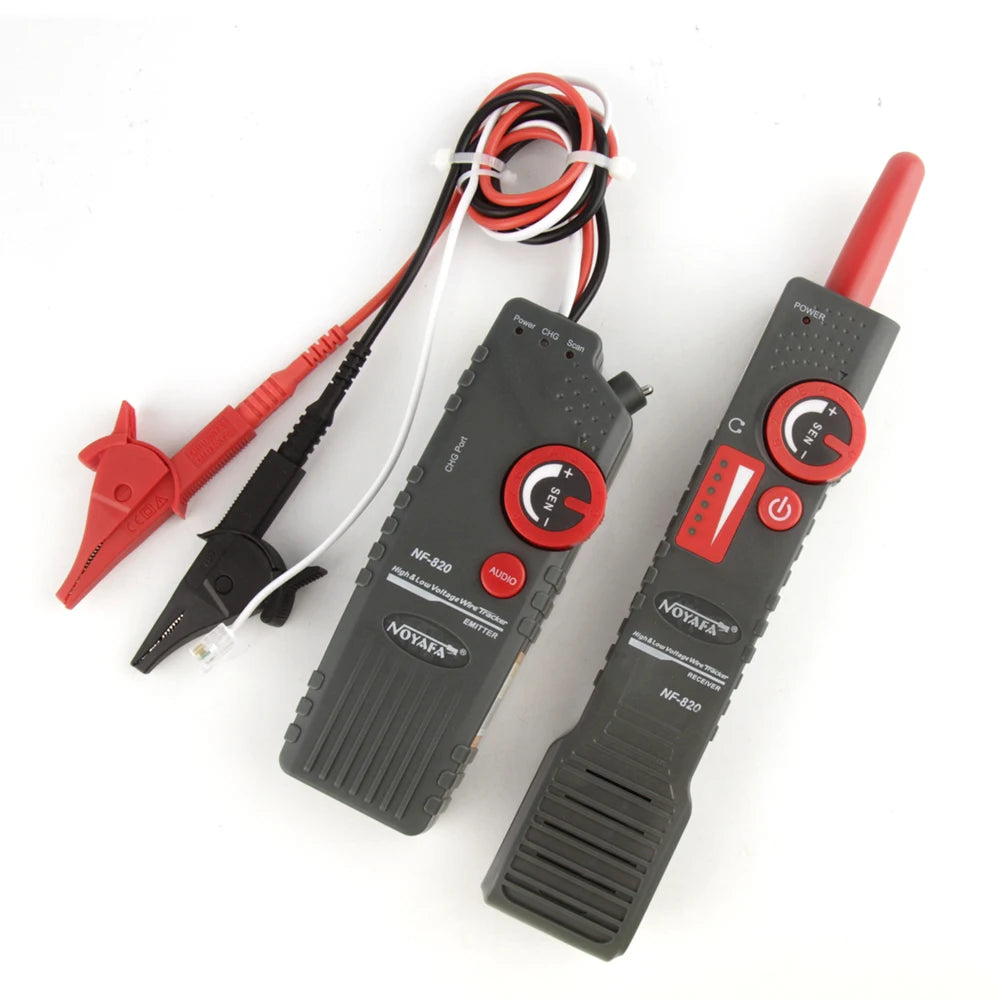

Noyafa NF-820 Network Cable Tester and Cable Tracker with Amplifier Probe for High/Low Voltage Wires

Discover the Ultimate Cable Tracking Solution

The Noyafa NF-820 is designed to simplify your cable locating tasks, whether for high or low voltage applications. This advanced wire tracker allows you to effortlessly identify underground cable routes without interference, making it an essential tool for professionals and DIY enthusiasts alike.

Key Features

• Efficiently locates high and low voltage wires using an alligator clip that can access AC220V without damaging equipment.
• Operates without interference from external currents, ensuring accurate cable hunting.
• Simultaneous use of alligator clip and socket for enhanced functionality.
• Detection range of up to 2 meters deep and cable length capability of 2000 meters.
• Adjustable amplifier probe signal strength with visual indicators for ease of use.

Functionality at Its Best

This wire tracker is equipped with a tone generator that allows for adjustable signal strength, making it versatile for scanning single cables, dual-core, and multi-core wires. It also features a low battery display and polarity judgment to ensure reliable operation.

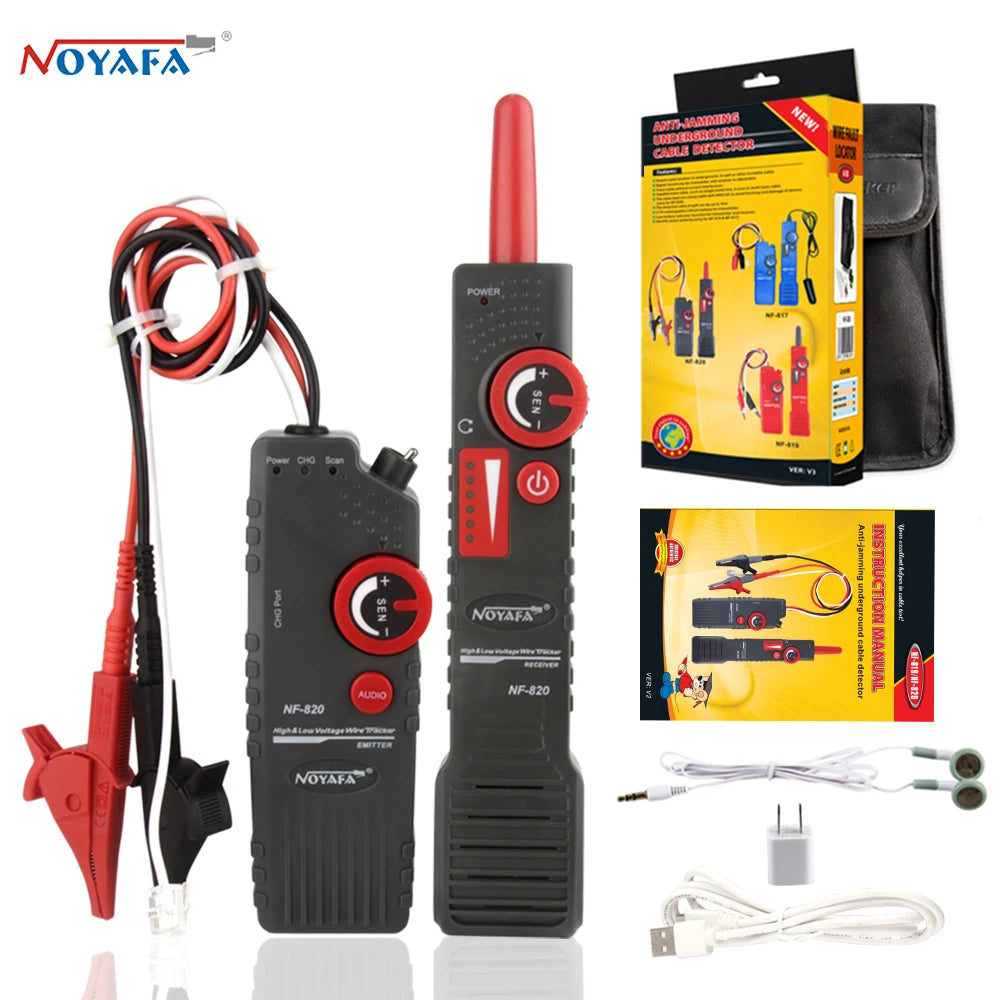

Included Accessories

• Tone Generator x 1
• Amplifier Probe x 1
• 5V1A Charger x 1
• USB Charger Cable x 1
• Earphone x 1
• Manual x 1
• Certificate of Approval x 1
• Toolkit x 1
• Color Box x 1

Technical Specifications

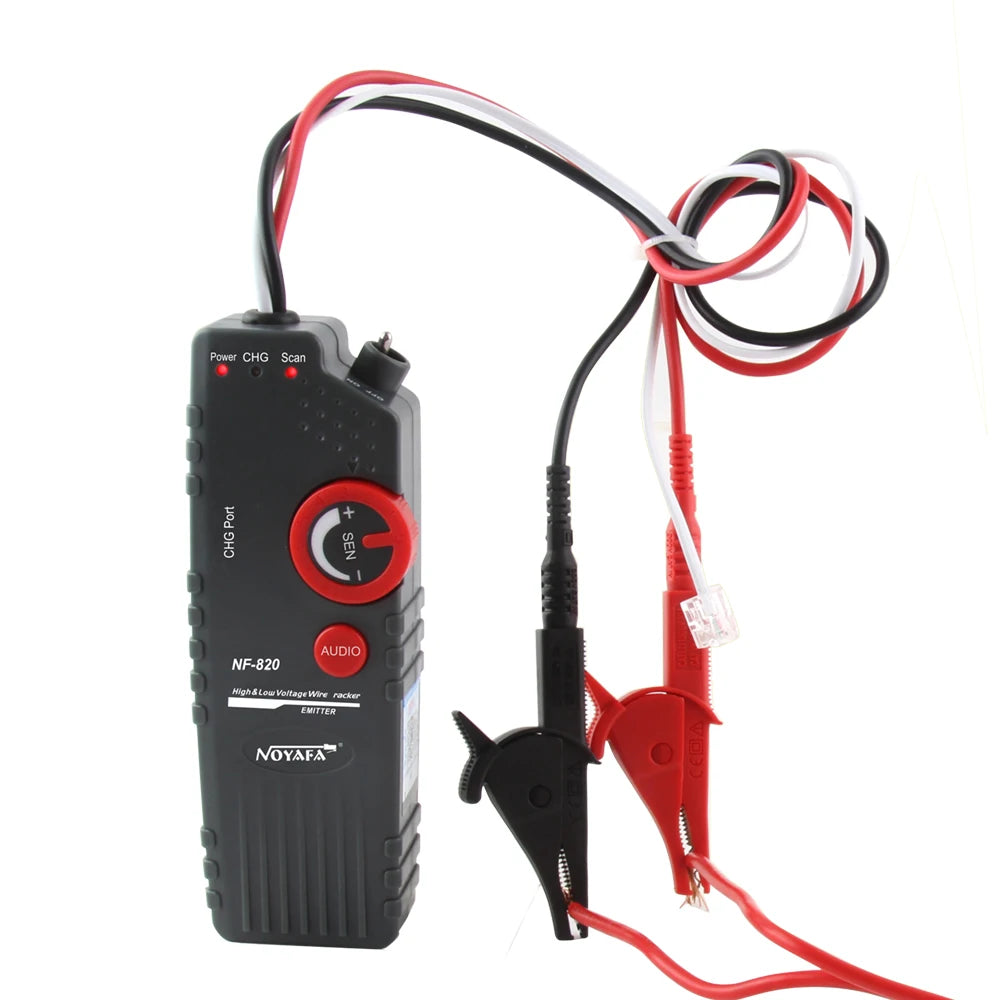

Transmitter:
Max. Transmission Distance: ≥2000m
Max. Working Current: 40mA-50mA ±10%
Volume Control: Yes
Signal Detection Depth: 0-2m

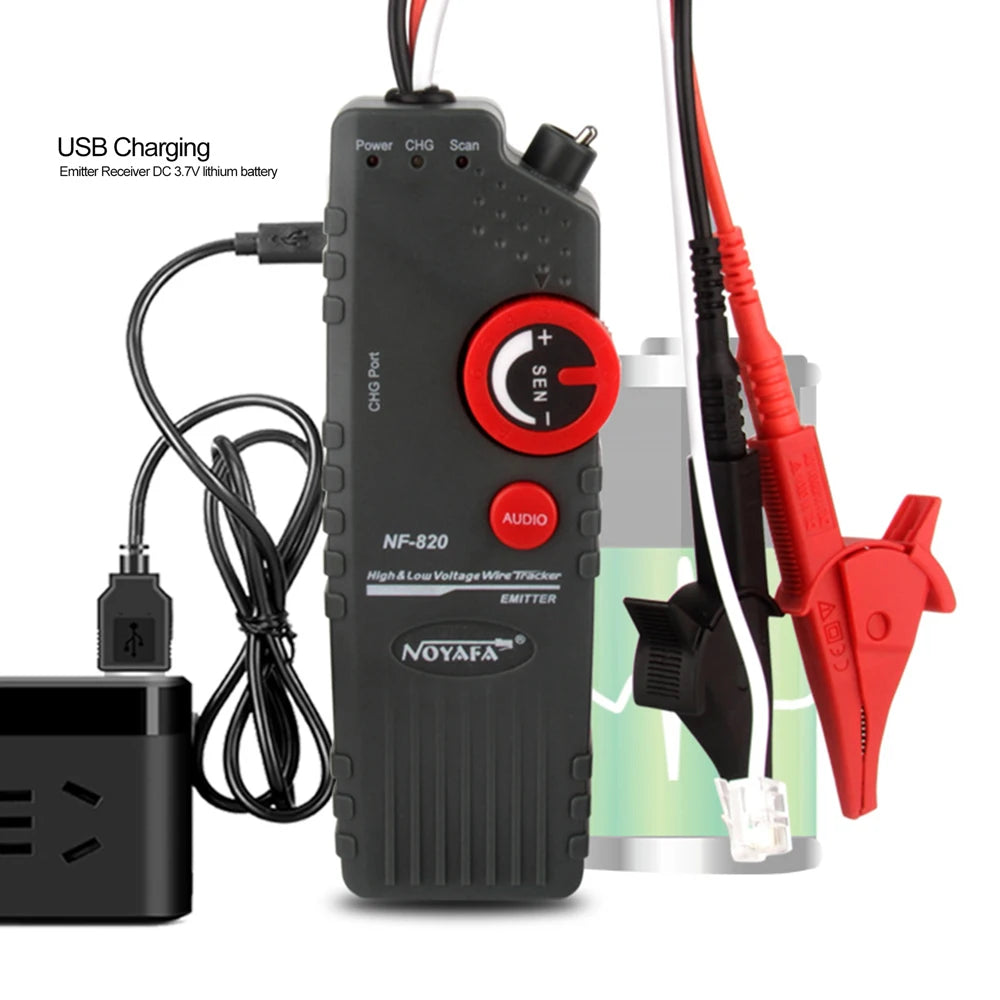

Charge Voltage: 800mA
Battery Type: DC 3.7V
Dimensions: 152 x 55 x 34mm

Receiver:
Power Supply: DC9.0V (NEDA 1604/6F22) x 1
Max. Working Current: 40mA-50mA ±10%
Work Temperature: -10℃ to +50℃
Work Humidity: 30%-60%
Dimensions: 252 x 45 x 28mm

Versatile Applications

Ideal for a variety of applications including:

• Cable wiring and weak current systems
• Communication cabling and home decoration systems
• Telephone systems and computer networks
• Utility installation and maintenance

Package Includes

1 x Noyafa NF-820 Wire Tracker
